Marble
£1,399.00
Prepare: 1-2 Business Days
Shipping: 3-5 Business Days
28″, Step-over with ascending top tube, 45cm frame, 644Wh big battery, responsive motor. Give yourself a young and dynamic look on this bike. Suitable for riders of 160-190cm in height.
Related Products
Why Deruiz Quartz?
250W
Powerful Hub Motor
48V 644 Wh
Lithium battery
8-speed
Derailleur gears
135kg
Max. Load Capacity
25km/h
Top speed
50-150km range
Range on driving style

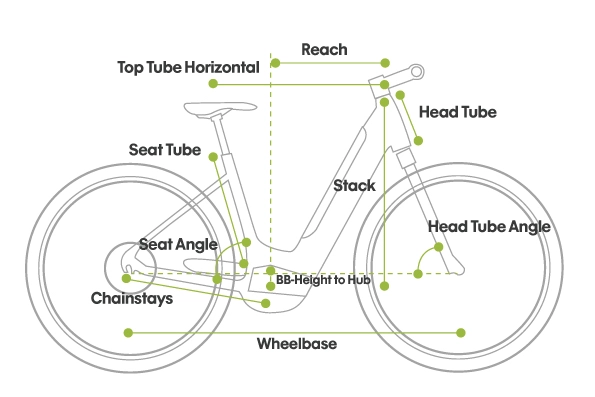

GEOMETRY
- Head Tube
- Head Tube Angle
- Reach
- Tube Horizontal
- Stack
- 170mm
- 69°
- 418.9mm
- 590mm
- 667.4mm
- Seat Tube
- Seat Angle
- BB-Height to Hub
- Chainstays
- Wheelbase
- 450mm
- 72.4°
- 57mm
- 457mm
- 1154.4mm
Components
|
FRAME Aluminum Alloy 6061 |
SIZE Easy Entry: 28″, one size |
|
TYPE Step over |
SUSPENSION FORK Suntour NEX HLO DS , 63mm |
|
DRIVE UNIT BAFANG 250W 40Nm rear motor |
BATTERY DERUIZ DownTube, 48V 644 Wh |
|
DISPLAY DERUIZ LCD with Bluetooth |
CHARGER DERUIZ 48V 2A |
|
BRAKE SYSTEM TEKTRO Aries TR180 |
SHIFTERS SHIMANO ALTUS, 8 speed |
|
CRANKSET Prowheel Crankwheel, 42T, 170mm |
CASSETTE SHIMANO ALTUS 11-32T, 8 Speed |
|
HANDLEBAR DERUIZ Special comfort Bar |
STEM DERUIZ Comfort Stem Pro, 31.8mm, Adjustable |
|
GRIPS DERUIZ soft 130mm pairs |
HEADSET DERUIZ H823PL toothless, one-piece, 28.6*44*30, stacking thickness 22.3mm |
|
HUB Quick release 115mm |
RIMS 36H, Disc, Tubeless Ready |
|
TIRES Schwalbe big ben city&trekking 28*2.0 inch |
|
|
SEAT POST DERUIZ 0-100mm,adjustable |
SADDLE Selle Royal Leather Surface |
|
PEDALS VP 856 Trekking |
FRONT LIGHT 50 lux |
|
REAR LIGHT with brake singals, 6V/36V/48V Universal, DC |
KICKSTAND 265-330mm adjustable |
|
MUDGUARDS 58mm aluminum front&rear |
CARRIER DERUIZ Semi-Integrated Carrier, load capacity 25kg |
|
WEIGHT 27,6 kg |
APP Smart App Intelligent system |
|
MAX RIDER WEIGHT 135kg |
MAX SYSTEM WEIGHT 140kg |
