Quartz
£1,399.00
Prepare: 1-2 Business Days
Shipping: 3-5 Business Days

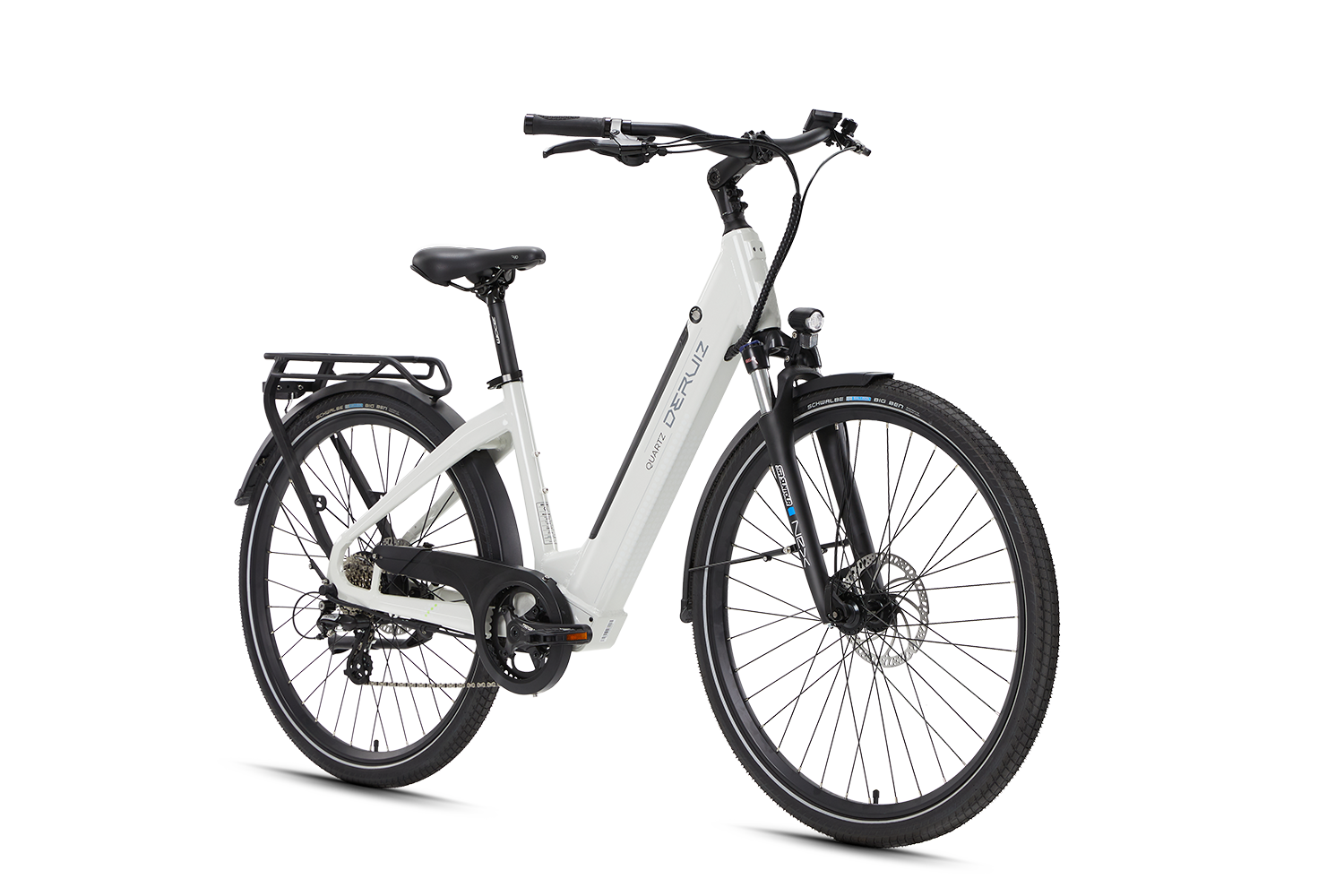

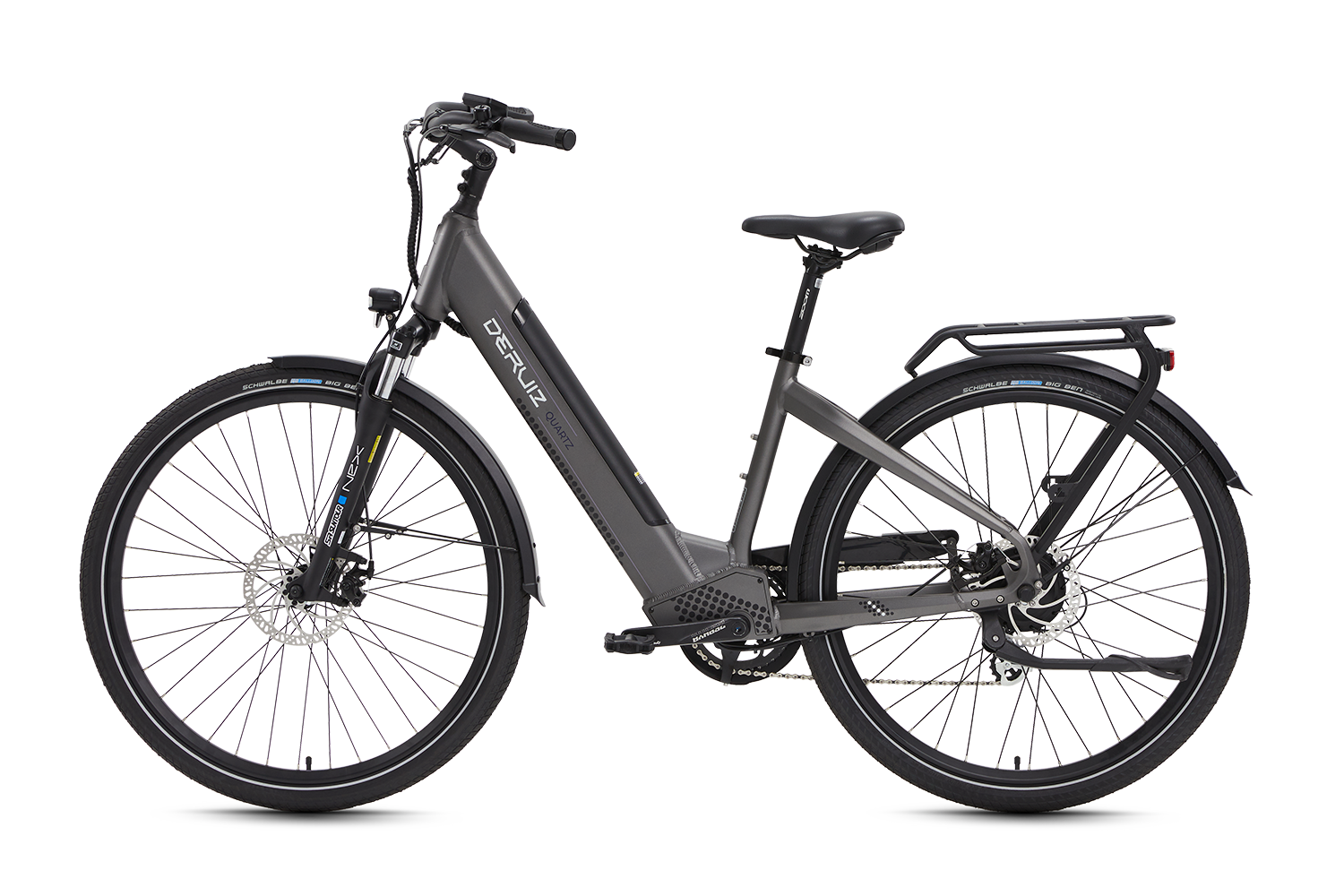

28″, Easy entry 45cm frame, 644Wh, big battery, responsive motor, long reach. Give yourself a young and dynamic look on this bike. Suitable for riders of 160-190cm in height.
Related Products
Why Deruiz Quartz?
250W
Powerful Hub Motor
48V 644 Wh
Lithium battery
8-speed
Derailleur gears
130kg
Max. Load Capacity
25km/h
Top speed
50-150km range
Range on driving style
GEOMETRY
- Head Tube
- Head Tube Angle
- Reach
- Top Tube Horizontal
- Stack
- 170mm
- 69°
- 421mm
- 590mm
- 659.8mm
- Seat Tube
- Seat Angle
- BB-Height to Hub
- Chainstays
- Wheelbase
- 440mm
- 72.4°
- 50mm
- 450mm
- 1157.4mm
Components
|
FRAME
Aluminum Alloy 6061 |
SIZE
Easy Entry: 28″, one size |
|
TYPE
Step through |
SUSPENSION FORK
Suntour NEX HLO DS Air, 63mm |
|
DRIVE UNIT
BAFANG 250W 40Nm rear motor |
BATTERY
DERUIZ DownTube, 48V 644 Wh |
|
DISPLAY
DERUIZ LCD with Bluetooth |
CHARGER
DERUIZ 48V 2A |
|
BRAKE SYSTEM
TEKTRO Aries TR180 |
SHIFTERS
SHIMANO ALTUS, 8 speed |
|
CRANKSET
Prowheel Crankwheel, 42T, 170mm |
CASSETTE
SHIMANO ALTUS 11-32T, 8 Speed |
|
HANDLEBAR
DERUIZ Special comfort Bar |
STEM
DERUIZ Comfort Stem Pro, 31.8mm, Adjustable |
|
GRIPS
DERUIZ soft 130mm pairs |
HEADSET
DERUIZ H823PL toothless, one-piece, 28.6*44*30, stacking thickness 22.3mm |
|
HUB
Quick release 115mm |
RIMS
36H, Disc, Tubeless Ready |
|
TIRES
Schwalbe big ben city&trekking 28*2.0 inch |
|
|
SEAT POST
DERUIZ 0-100mm,adjustable |
SADDLE
Selle Royal Leather Surface |
|
PEDALS
VP 856 Trekking |
FRONT LIGHT
50 lux |
|
REAR LIGHT
with brake singals, 6V/36V/48V Universal, DC |
KICKSTAND
265-330mm adjustable |
|
MUDGUARDS
58mm aluminum front&rear |
CARRIER
DERUIZ Semi-Integrated Carrier, load capacity 25kg |
|
WEIGHT
27,5 kg |
APP
Smart App Intelligent system |
|
MAX RIDER WEIGHT
130kg |
MAX SYSTEM WEIGHT
140kg |
